Angle

Name: Angle
Author: HoRNet

by HoRNet · EQ · Tilt EQ

Not rated yet

Angle is a free tilt EQ from HoRNet that shifts a track's tonal balance between bass and treble with a single control.

It has ±18 dB of tilt, auto gain, peak meters and an analog stage based on HoRNet's AnalogStage op-amp model.

Best for: Mix Bus, Mastering, Vocals, Guitars, Keys & Synths. Genres: all genres.

Keywords: op-amp, auto-gain, single knob, free, metering, bright, bus processing, full mix, mixing, oversampling, warm, beginner-friendly, dark, enhancement, harsh, mastering, minimal controls, mix bus, static, vocals.

What it does

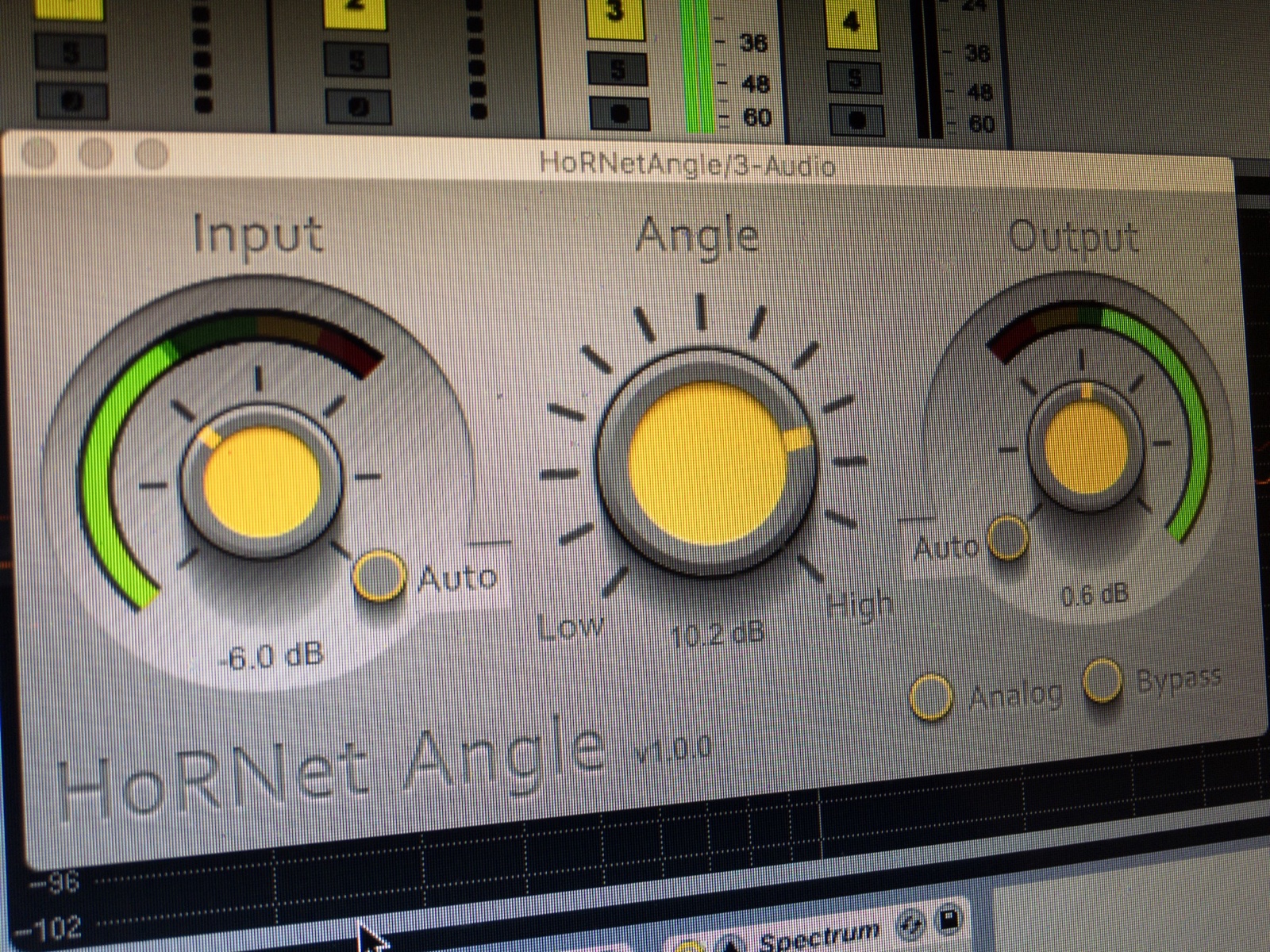

Angle is HoRNet's free tilt EQ, a "compact and incredibly useful tone shaping plugin". One knob tips the whole spectrum around a fixed point, making a track darker or brighter in a single move.

Tilt control: the Angle knob ranges from -18 dB to +18 dB, cutting one end of the spectrum as it boosts the other.
Fixed pivot: the tilt turns around 650 Hz, and the pivot cannot be moved.
OpAmp switch: an analogue mode based on the op-amp model from HoRNet's AnalogStage, which adds harmonics to warm up the signal.
Gain and auto gain: input and output level controls, each with an Auto Gain switch, so a tilt doesn't change the overall level.
Metering: input and output peak meters.
Oversampling: an automatic oversampling system to keep aliasing down, plus a bypass button.

It is free.

Source: HoRNet product page

When to use it

Angle is a free, very fast way to change the overall tone of a track or bus with one knob. Compared with Tonelux Tilt EQ, it offers similar one-knob shaping but adds an op-amp saturation mode and auto gain, though its pivot is fixed at 650 Hz. Pro-Q 4's tilt shelf lets you move the pivot and set the slope, but takes more steps. Unlike a Pultec-style EQ such as the Pultec Passive EQ Collection, it does not shape the lows and highs separately; it moves the whole balance at once.

Best for: quick brightness or warmth changes on buses, stems, masters and dull or harsh tracks.
Genres: any.
Look elsewhere if: you need a movable pivot (Pro-Q 4's tilt shelf).
Tip: engage the OpAmp switch to add a little harmonic warmth along with the tilt.

What producers say

Seen as a handy free tool if you don't already own a tilt EQ, with early stability issues fixed quickly.

Bedroom Producers Blog (2017) called it "a neat little mixing tool" and liked the analogue mode for warming up a mix; it noted the pivot can't be moved.
KVR users rate it 4 out of 5 from 1 review: the reviewer (Cubase) hit crashes and stereo problems in version 1.0.0, but found 1.0.1 worked well with no crashes.

Where to buy

HoRNet: Free

Tutorials and reviews

Similar plugins

TILTA by Analog Obsession · Tilt EQ · Free
TiLQ Equalizer by Kuassa · Free tilt EQ · Free
Tonelux Tilt EQ by Universal Audio · Tilt EQ · $59
Tonelux Tilt and Tilt Live by Softube · Tilt EQ · $59
sTiltV2 by TBProAudio · Tilt EQ · Free
Things - Flip EQ by AudioThing · Tilt EQ · $17.86
niveau filter by Elysia · Tilt EQ/filter · $49
4U+ DynamicTiltEQ by HOFA · Dynamic tilt EQ · Free
R52 Baxandall by Pulsar Modular · Valve Baxandall tone control · $129
